When it comes to modern construction and renovation in wet environments – like bathrooms, kitchens, steam rooms, pools, and more—wedi Building Boards stand out as a high-performance, waterproof, insulating, and versatile building solution. Let’s explore why they’re revolutionizing the industry.

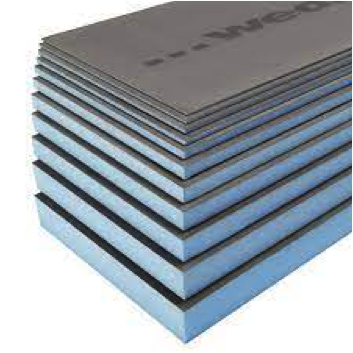

What Are wedi Building Boards?
| Feature | Description |
| Core | Blue, extruded polystyrene (XPS) rigid foam—100% waterproof and highly insulating |
| Reinforcement | Coated on both sides with glass-fiber mesh embedded in polymer-modified cement |
These boards are designed as a building element for tile, plaster, stone, and more—no additional waterproofing required.
Core Advantages
- Waterproof & Mold-Proof
Inherently resistant to moisture—even if the surface layer is damaged—preventing mold growth.
- Excellent Thermal Insulation
With a low thermal conductivity (~0.036 W/mK), they help maintain warmth and energy efficiency.
- Lightweight & Easy to Work With
Tools like utility knives or saws are all you need for cutting. Installation on surfaces like drywall, masonry, wood, and old tiles is fast and precise.
- Strong Bonding Surface
The mesh-reinforced cement layer ensures excellent tile adhesion, eliminating delamination and improving structural integrity.
- Stable & Durable
Designed for long-term resilience—no shrinkage, delamination, or off-gassing—up to 40 years of performance.
Technical Highlights
Some key specs of the standard wedi Building Board:
- Sound insulation: ~23 dB Rw (12.5 mm thickness)
- Compressive strength: ~0.25 N/mm² at 10% compression
- Bending strength: Avg. 3,900 kPa
- Thermal conductivity: ~0.036 W/mK
- Temperature tolerance: -50 °C to +75 °C
They also meet fire-class EN 13501 E and are free from HCFC/CFC.
Product Variants for Specific Needs
- XL & XXL Boards
Oversized formats (up to 1.2 m wide) reduce seams and speed up installs—ideal for large partitions.
- Vapor Building Board
Designed for high-humidity environments like steam showers, combining waterproof XPS with one-sided vapor protection.
- Construct Building Board
Features factory-scored grooves for bending into curves—perfect for benches, niches, or freeform designs.
- PreLine Boards
Include built-in channels for underfloor heating pipes—simplifying radiant-heating installations.
Where to Use Them
Versatile and customizable, wedi boards are suitable for:
- Shower and bathtub walls
- Steam rooms and pools
- Floors with or without radiant heating
- Countertops, backsplashes, benches
- Curved or custom architectural features
Benefits for Professionals
- Streamlined Installation: Combines waterproofing and tile backer in a single product—no need for cement board + membrane.
- Time & Cost Efficiency: Faster installs, less mess, fewer labor hours.
- Reliable Performance: One system under one warranty, tested to ANSI and ASTM standards.
Conclusion
wedi Building Boards bring together waterproofing, insulation, strength, and ease of use, all in one high-performing system. They’re the go-to solution for durable, modern construction across wet zones—helping builders save time, ensure quality, and deliver lasting results.
